Introduction

The 3pc Ball Valve is a valve for pipeline fluid control, available in bulk and customizable.

Item	Specification / Description
Model	P30C or OEM
Construction	3 pc screwed / split body
Size	1/4" – 4" (DN6–DN100)
Rating	PN16–40 / 1000 WOG / 1000 psi (also 2000 WOG PN63 for high pressure models)
Working Temperature	-196℃ to +400℃ (-4℉ to 500℉)
Design Standard	ANSI B16.34 / ASME VIII Div.1 / EN 12516-1
Face to Face	ASME B16.1
Stem Design	Anti Blow-Out, Blow-Out Proof
Mounting Pad	ISO 5211 (for actuator)
Tightness Class	API 598 Cl.A / ASME B16.104 / FCI 70-2 Cl.VI / GOST 54808 Cl.A / EN 12266-1 / ISO 5208
Connection Types	GAS / NPT / DBSP / DIN / Socket Weld / Butt Weld
Seats	Soft or metal seated
Materials (Parts)	Ball: ASTM A276-304/316; Stem: ASTM A276-304/316; Cap: ASTM A351-CF8/CF8M; Body: ASTM A351-CF8/CF8 / ASTM A216-WCB; Thrust Washer: RTFE/CTFE; Gland Ring: AISI 304; Others: Stainless Steel, PVC, Viton O-Rings

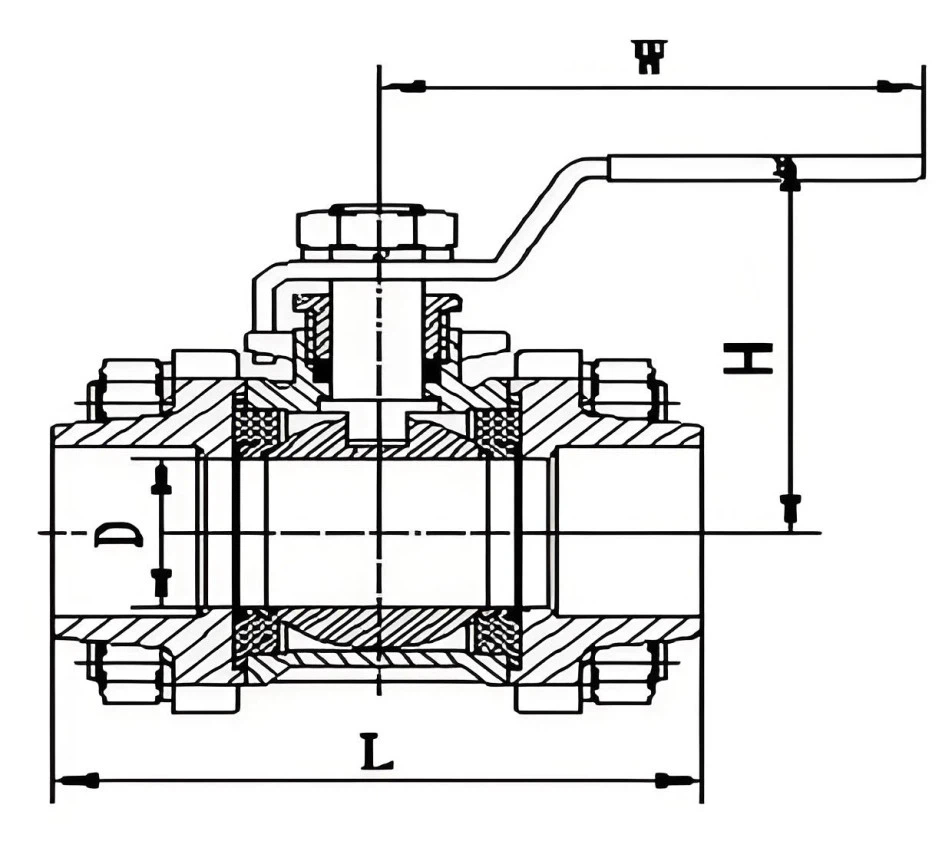

product-952-841

Features of 3pc Ball Valve

Durable Valve Body

The valve body is made of WCB, CF8, or CF8M stainless steel, with a normal service life of 8–10 years in industrial pipelines.
Three-Piece Maintainable Structure

The 3pc Ball Valve features a three-piece body design, allowing for cleaning or seal replacement by disassembling the middle section without dismantling the entire pipeline.
High Sealing Performance

The ball and seat are precision-machined and combined with PTFE, RPTFE, or PEEK sealing materials to maintain Class VI sealing performance, reducing the risk of internal leakage.
Anti-Blow-Out Stem Design

The anti-blow-out stem design prevents the stem from being pushed out by the medium under high pressure, improving system safety.

Item	Available Options / Description
Valve Body Material	CF8, CF8M, WCB
Sealing Structure	PTFE, RPTFE, PEEK, Metal Seat
Pressure Rating	PN16 – PN138 (customized according to operating conditions)
Connection Methods	Threaded, Welded, Flanged, Special Interface Types
